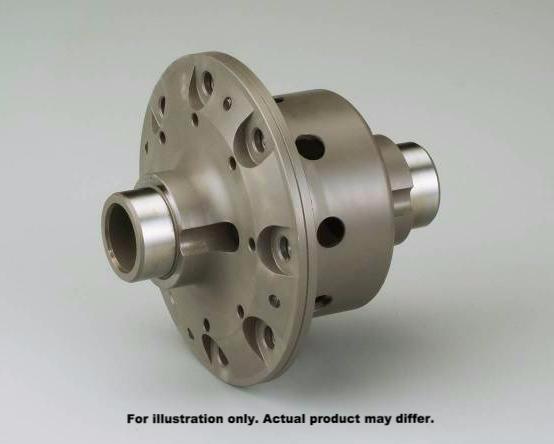

Example of the OS Giken Super Lock limited slip differential sold by Borg Motorsports for the fourth generation (C4) Corvette.

OS Giken Super Lock LSD for the C4

$1,980.00 USD

Tune

Quantity

This OS Giken Super Lock differential fits the C4 Corvette.

Superior Design

Miniaturized pressure ring and a superior spline-through-side-gear design allows for fitment of more friction plates (up to 2x as many as competitors versions), offering true 100% lock capability.
Patented pressure ring design allows for smooth, progressive locking.
LSD case has a relief cut-out for the cone spring, resulting in minimal cone spring degradation and enhanced durability.

Superior Construction

All components are chemically heat treated for maximum durability
All components are constructed from a high-grade steel alloy
Gears are raw-forged for maximum strength
Clutch disks are precision-machined simultaneously on both sides to extremely tight tolerances resulting in minimal warpage.
LSD case is machined from a single billet piece to ensure uniformity.

Superior Overall Performance

The OS LSD standard spec allows for low preload while still retaining a fully progressive 100% lock capability; basically, the vehicle will feel like driving on an open diff in slow turns / street driving, but can still transmit maximum power to the drive wheels under load.
Operation is ultra quiet, and the progressive locking allows for smooth, predictable locking. Especially when replacing an open diff, equipping OS LSD will completely improve the driving experience while maintaining everyday drivability.
Due to the precision manufacturing, high-grade materials, and unique design, a break-in period nor rebuild is required for OS Giken LSD’s. OS LSD is purposefully over-engineered to offer the best performing, most durable clutch-type LSD available.
Aside from the performance advantage and stock-like feel at slow speeds, vehicles equipped with OS LSD are more stable in all road/weather conditions, allowing for a safer driving experience.

Tunability

Initial torque can be adjusted by using thicker / thinner cone springs
Lock progression timing can be adjusted by using stiffer / weaker pressure ring springs, allowing the progression of full lock to be fine-tuned to the vehicle/driver.
Ramp angles can be customized by swapping the pressure ring and iron cross for even more tuning possibilities.
TCD spec disks can be installed for increased oil cooling and even smoother operation.

Please specify which tune you prefer (autocross or road race). Differential includes stub axles. Fluid not included.

***SPECIAL ORDER ITEM*** This part is special order and ships from OS Giken. There may be a delay in shipping this item. If you need exact availability, please contact us before ordering.

If you are considering a different fluid than the OSG brand fluid, please see this link for information on approved alternates.
